carbonate selectrode shape

CARBONATE ELECTRODE RESPONSIVENESS as determined by electrode shape
Raw AD values were recorded using the two electrode shapes: a thin tapered tip with a 180um column of LIX (shape-A) and a steep shank with 15-25um column of LIX (shape-B).
Data obtained while moving towards (+ move) and away (- move) from an artificial Na₂CO₃ source illustrated that shape-B adjusts more efficiently to the probe's movement in obtaining stable results.

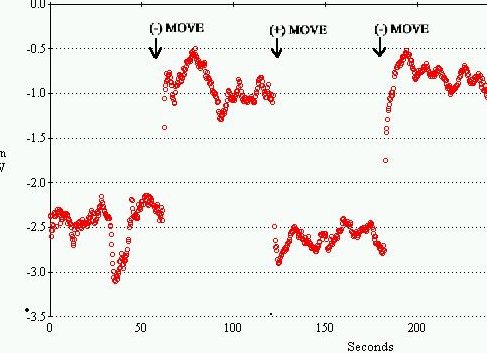

Shape-A: Thin tapered tip with 180um of LIX

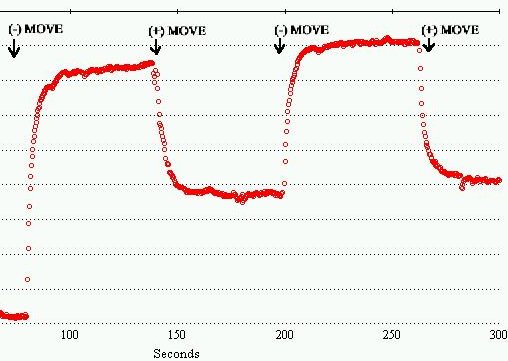

Shape-B: Steep shank with 15-25um of LIX
