Eric's Overview of Class FC Results 2001

H = Histograms; D = Dot plots
    Splenocytes
  1. Effect of antibodies on scatter dot plot.

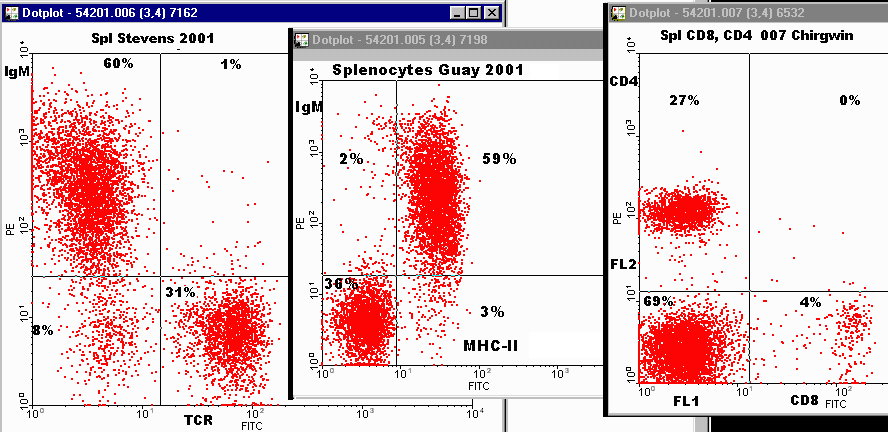

  2. IgM and MHC II.
                      File IgM+         File TCR+
    Splenocytes Rachel  9  64%     Chris  6  32%
            Rahilya 4  60%     Mike   3  28%
            Sarah   8  59%
            Todd    5  60%
            Chris   6  60%
Thymocytes  Kofi   18  <1%

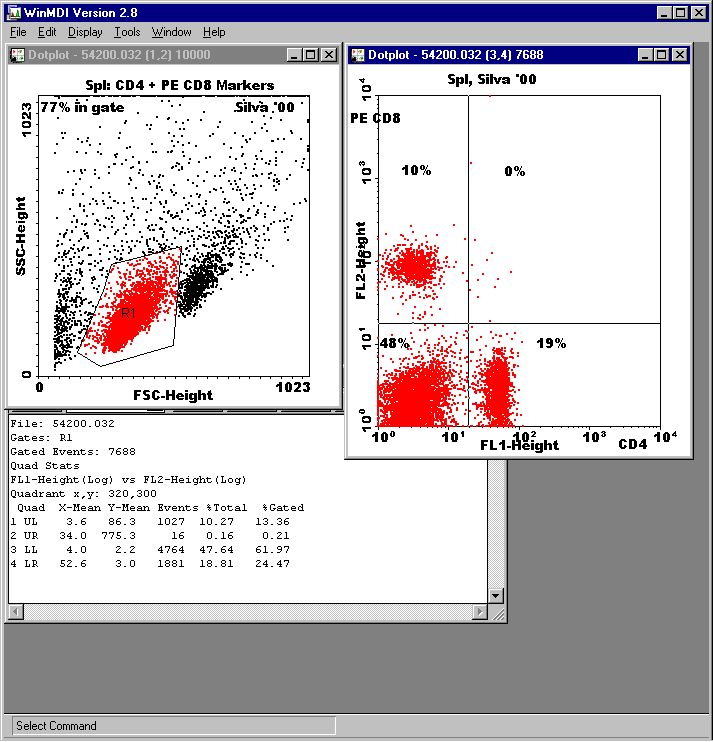

  3. T and B cells.
                         File  CD8+  CD4+  Sum
    Splenocytes Dave      7     4%   26%   30%
            Rahilya   4     2.4%
            Aaron    10          25%
            Mike      3          25%
            2000     32     10%  19%   29%
            1999

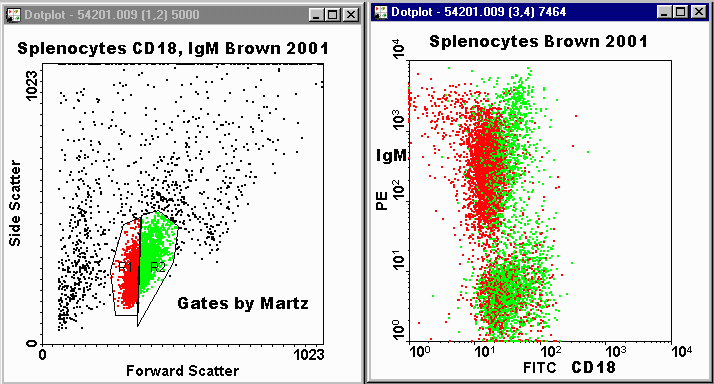

  4. CD18 on B vs. T cells.
  5. MHC I on B vs. T cells.
  6. CD18 vs. cell size - scatter gated.
  7. CD18 vs. cell size - fluorescence gated.
  8. 1997: CD18, ICAM-1 on B vs. T cells.

    Thymocytes

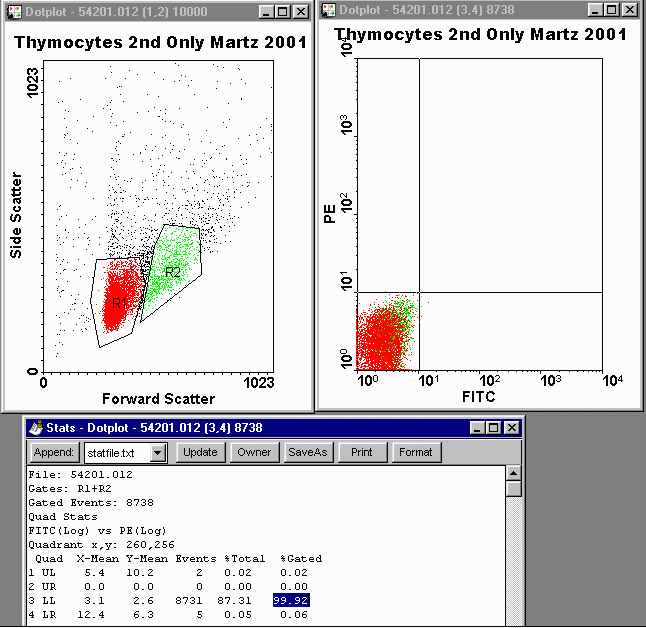

  9. 2nd antibody only.

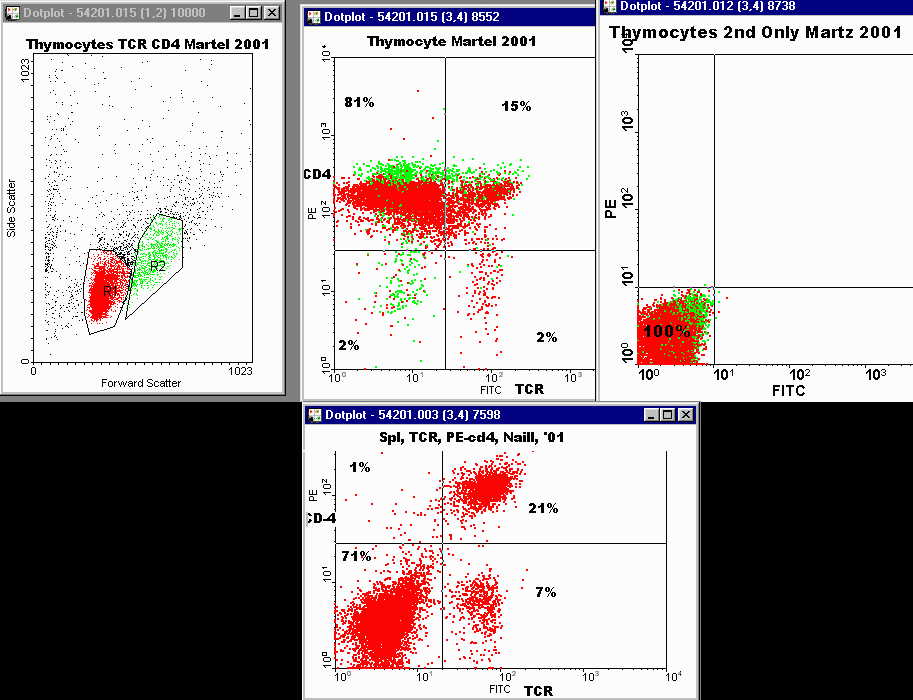

  10. TCR, CD4.
  11. TCR, CD4 with comparisions.
  12. CD4, CD7, Thy-1, TCR, IgM.
    B cells in the thymus? cf. 1997

  13. 1999 Compensation (green spillup correction) D
