Use of Morphometrics and Biochemical Assays to Study the Development of  Larval Tautog.
Full proposal response to CMER NOAA/NMFS RESEARCH TOPICS - 1998:
by Joseph G. Kunkel
Biology Department
University of Massachusetts at Amherst
19. Effect of Dietary Fatty Acid and Amino Acid Composition on the Growth Rate and Body Composition of Larval Tautog (Tautoga Onitis) and on the Reproductive Success of Adult Tautog
     (Contact: Dean Perry, 203-783-4230, and Laurel Ramseyer, 203-783-4222,  Milford Laboratory)

"For tautog aqua culture to advance, the effect of diet quality on egg production, larval survival and larval growth must be quantified" (Perry and Ramseyer, 1997). This request for analytical assistance requires a special laboratory that is familiar with dealing with both biochemical analyses and the concepts of morphological growth and development of embryos. The maternal effects of the female diet and larval diet on the success of the offspring can be transmitted in several ways. First, the health of the mother may be affected and her general health may determine egg quantity and quality. Second, the maternal effect on egg quality may have its effects on embryonic processes that precede the utilization of stored egg reserves (lipid, yolk protein) or the ability to access those reserves. Finally, the maternal effect may be exhibited in the reduction or modification of the reserves that are stored in the egg. In addition the quality of the larval and juvenile diets may directly affect their development.


We intend showing that a battery of basic biochemical measurements combined with simple landmark measurements and modern morphometric analysis can assist the assignment of a quantitative index of developmental state to embryonic and larval stages of fish. This battery of measurements will use modern inexpensive technology which can be applied to individual embryos. This approach will allow factorial experiments to be designed to evaluate various aspects of aquaculture methods to the rate and uniformity of larval growth.   Factorial experiments will be designed to test the effectiveness of defined applied nutritional regimes. The dietary factors to be tested include various live algal species cultured at the Milford NMF Laboratory which will be analyzed with respect to their spectrum of polyunsaturated fatty acid and amino acid contents.  The timing of conversion to a less expensive commercial fish diet will be a factor in the experimental design. The contrasting diets will be built from analyzed components with the C3 and C6 polyunsaturated fatty acids as major variables.


My laboratory is prepared to carry out all the methodology required to satisfy the Perry and Ramseyer request for technical assistance in studying dietary fatty acid and amino acid composition on the growth rate and body composition of larval tautog and reproductive success of the adults.

Biochemical Methods.
The Kunkel lab is familiar with the techniques of lipid extraction, amino acid analysis and gravimetric determination of % lipid in biological samples (Kunkel and Pan, 1976). We will prepare lipid extracts of the proposed dietary constituent algae provided by the Milford Lab and add appropriate antioxidants to the lipid extracts. The polyunsaturated profiles will be analyzed under the direction of Associate Professor Eric Decker of the U. Mass. Department of Food Sciences (endorsement letter attached). The protein fraction will be hydrolyzed in 6N HCl and the amino acid content analyzed by the analytical facility of the Molecular and Cellular Biology Program at $50 per sample.

Analysis of the protein, RNA and DNA content of the resultant eggs and larvae will be carried out by established protocols in the Kunkel laboratory.   Analysis of calmodulin (CaM) content per embryo will be carried out using dot blot immunochemical test with available anti-CaM serum which has broad species specificity (Zhang & Kunkel, 1991). Analysis of lipovitellin per embryo will also be carried out by dot blot analysis based on purification of Tautog lipovitellin (Lv) and raising a specific anti-Lv serum in a rabbit (Hartling, Pereira and Kunkel, 1997).

Growth Measurements.
Morphometrics has experienced a revolution in the past decade.  The old statistical techniques are being abandoned in favor of a new approach that allows one to deal with the size and overall shape of an organism.  New tools for examining shape have been developed and are freely shared by an active group over the internet: (URL:  The new techniques focus on landmarks and measure the distortions that occur in a set of homologous landmarks as an organism develops or evolves.  This approach can be applied to either 2-D profiles or actual 3-D coordinates of specimen landmarks.  I will develop this proposal for the 2-D profiles of fish that students of fish development are familiar with using ( Kuntz and Radcliffe, 1917, fig. 11).

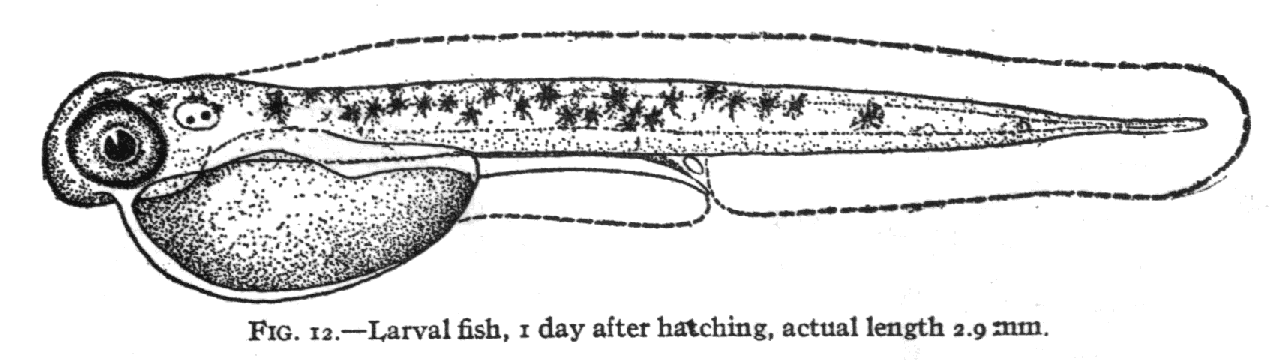

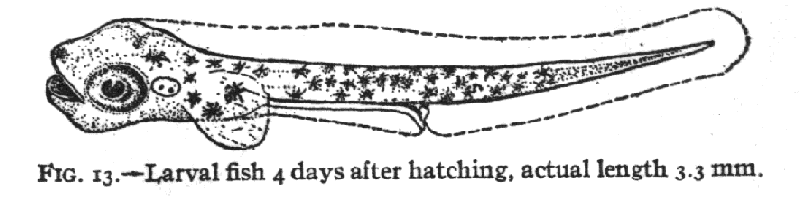

This figure needs to be able to be related to similar and later stages of development (such as  Kuntz and Radcliffe, 1917, fig. 12).

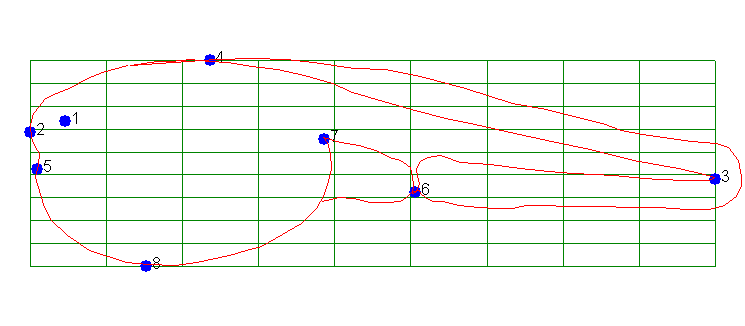

We can do that by defining common landmarks and measuring the degree of distortion that is needed to transform one image into the other.  To use Fig. 11 as a reference we define the landmarks and establish a grid pattern that those landmarks reside in:

By using the mathematics of thin-plate-splining which is made available to us through the software of James Rohlf of SUNY Stoneybrook, we can compute the distortion of the grid that needs be applied to change the shape of  Fig. 11 into the shape of Fig. 12.:

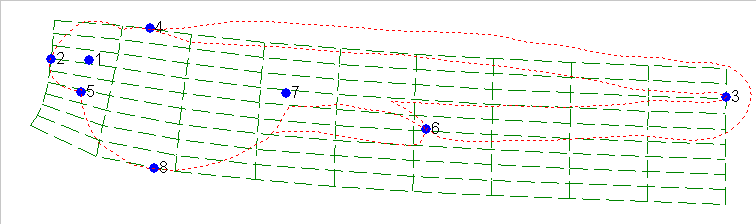

As one can see the grid pattern of Fig 11 needed to be squeezed and twisted in several ways to achieve the shape of Fig 12.  This can also be illustrated using the vectors which transform the two figures:

These vectors are another measure of the difference between one stage and another and can be used to measure how different (advanced or retarded) one stage is relative to another or relative to a series of stages used as references.  In effect, one can measure the shape difference between any two individuals.  The shape difference is independent of size difference, which can also be captured as the amount of isometric scaling factor that needs to be adjusted to allow the landmarks to be superimposed most closely.

For the above two figures, or any set of n figures, we can also calculate an average image based on the set of 8 landmarks:

The image average as illustrated above is potentially a useful tool that might be applied to individuals which according to age or sorting are all considered to be nominally the same stage.   A good diet might be defined as one that produces the smallest variation about the mean in a synchronous cohort of developing larvae.  The stage image average in this case would also give one a basis for discriminating individuals close to that stage.  By using the dispersion (covariance) matrix of the averaged landmarks one can also establish a discriminant function which gives an unknown larva a score indicating how closely it conforms to that stage.  With a series of stages, L1-Ln , defined at half day or 8 hour intervals one could quantitatively score the development of any individual larva as to its proximity to stages  L1-Ln  of development.
The series of scores, L1-Ln, for each individual, plus scores for dry weight, total protein, total RNA and DNA, and two key yolk proteins, Lv and CaM, could be very effective tools for comparing the effects of diets on larval development.  CaM has been shown in other organisms to occur in large amounts in eggs and to remain high during the rapid cell division phase of embryonic development, prior to Lv utilization.  A Lv measure would allow comparing the effects of maternal and larval diets on the yolk utilization phase which stretches from hatching through the establishment of normal feeding.  Following CaM in combination with Lv might be a useful tool in determining any effects of maternal diet on yolk composition.  These biochemical measures of development are more elaborate and expensive to carry out and must be evaluated as to whether they improve over the simpler morphometric measure of development.  The Kunkel Lab is experienced in measuring Lv, CaM and RNA on individual embryos (Hartling et al., 1997; Zhang and Kunkel, 1991; Iyengar and Kunkel, 1995).  As the larva develops and particular landmarks appear and disappear, a given stage may be defined by a new set of measures and landmarks (i.e. Kuntz and Radcliffe, 1917, fig. 13) with old irrelevant measures and landmarks dropped to improve the discrimination for the current span of development.

The above measures can be used in a traditional factorial experimental design which can be analyzed with available statistical packages.  Thus an observation vector on individual larva 'k' from maternal diet 'i' fed larval diet 'j' might include:
Yijk = Hatch-Age, DriWeight, Protein, Vg, CaM, RNA, DNA, Size, Score-1, Score-2, ..., Score-n.
This linear equation can be expressed in matrix form:
                 Y(ijk) = Xß ,
where Y(ijk) is the kxp observation matrix of p measures on k individual larvae, X is the design matrix specifying the treatments and interactions assigned to each treated larva and  ß is the parameter matrix to be estimated by the experiment and tested for significance.  A simple 6x6 unit design matrix with two maternal diets and three larval treatments is presented in the following table:
From this data set, suitably replicated to provide adequate degrees of freedom, one could ask:
(1) Is there a significant effect of imposed maternal diets on larval development?
(2) Is there a significant effect of imposed larval diets on larval development?
(3) Is there significant interaction between maternal and larval diets?

In addition one could work with the Analysis of Dispersion Model (Rao, 1965) to ask such questions:
(1) Given Age, DNA and Size is any additional information provided by Score-1 and 2?
(2) Given Larval Size is any additional information provided by DNA, RNA, Protein, Vg or CaM?

Such questions are important in establishing a minimal protocol for comparing the effectiveness of applied diets.  There is no use in applying multiple and costly assays if they do not supply additional information above and beyond simpler measures such as Larval Size or one or more Shape scores.


The Kunkel laboratory has a published history and capability of applying both biochemical and morphometric approaches to the study of development. entrez author search on kunkel-jg .  We are particularly interested in applying our experience with measuring biochemical and morphometric properties of organisms during development.  We intend to use this opportunity to demonstrate the usefulness of using a combination of biochemical and morphometric assays to establish the effect of dietary factors


The above protocols and experiments depend on a supply of eggs, timed embryonic and larval samples at appropriate times from Dean Perry and Laurel Ramseyer of the Milford NMF Laboratory. Initially, during the first year, we will need unfertilized eggs for purification of tautog Lv and making our anti-tautog-Lv-serum and testing our anti-CaM-serum. Milford Lab will also need to provide samples of fixed whole embryos and larvae at characteristic stages or ages (10 embryos per age/stage) so that we can establish the scoreable landmarks for each stage. In year two we will be applying our staging and analytical tools to the analysis of the factorial design experiments on dietary effects. The Milford lab will be integral to the experimental design decisions based on the analyses of the diet constituents and their best judgment about appropriate diet treatment contrasts for the developing embryos. They will establish the timing of sampling and provide live, frozen or fixed samples of embryos and/or larvae, depending on the assays we are carrying out.
The Milford NMF Lab has provided two lists of samples, one for polyunsaturated fatty acids (PUFA) and another for amino acids (AA), that it would like to be analyzed. The following two tables characterize the samples which will be provided by the Milford Lab for analysis by the UMass Lab:

PUFA Analysis Prey items and larval tautogs Samples Type
Mussels  macro
Crabs  macro
Commercial Diets  macro
Unicellular algae  macro
Rotifers  macro
Artemia  macro
Fertilized Eggs
(1-4 gms)
Larvae -
pool of 10 fish x 6 tanks x 5 weeks
30  micro
Larvae - after 5 weeks,
sample every 2 wks 4-6 x 6
24-36  micro
Larvae - 1 day before start feeding
pool of 10 fish x 6 tanks
Larvae - 2 days after yolk-sac absorption
pool of 10 fish x 6 tanks
Total 91-103  all
AA Analysis of larval tautog Samples
Fertilized eggs
Newly hatched
pool of 10 larvae x 6 tanks
Before metamorphosis
After metamorphosis
Total 16
The samples fall into two categories which can be categorized as 'micro' or 'macro' based on the amount of anticipated substance in each sample. Thus for the FA analysis the amount of lipid available in a 4 gram 'macro' egg sample is approximately 10 mg. This is abundantly sufficient to be accurately estimated by lipid extraction and gravimetric determination of the lipid plus PUFA analysis by standard techniques. For the 'micro' samples a micro approach will be required which will questionably have enough lipid for PUFA analysis. We will be examining the possibility of analyzing the lipid available from the 10 embryo 'micro' samples in our first year of study.   Micro PUFA analysis requires 100 ug of lipid as a minimum sample.  While the PUFA analyses of all the micro samples listed above are in question, the RNA protein and DNA analyses should be able to be run on either macro or micro sample.     Due to the uncertainty of PUFA content of tautog during its development, a  series of  single aged tautog will be needed in the second six months of the first year in establishing the minimum age of fish from which the minimum sized sample (100 ug lipid) can be taken for PUFA analysis.
                                                      YR-1     YR-2     2-YR
                                                      98-99    99-00    98-00
1 JG Kunkel                                              $0       $0       $0
Personnel: 1 graduate student ($13.08/hr)           $13,603  $13,604  $27,207
           Geo Fringe benefits ($1.525/hr)            1,586    1,586    3,172
           1 undergraduate student trainee              500      500    1,000
Services:  PUFA analysis                                300    1,000    1,300
           Amino Acid Analysis                          100      800      900
           Antibody Production                        1,000        0    1,000
Equip: Trinocular dissecting scope.                   4,000        0    4,000
         CCD Camera                                       0      500      500
         Dedicated computer                               0    2,000    2,000
         Frame grabber Board                              0    1,000    1,000
Supplies:  Chemicals, immunologicals, glassware       3,000    3,000    6,000
                                       Total:       $24,089  $23,980  $48,069
An effective project to determine the effects of diet on tautog aquaculture will require at least two years of study.  The first year will be used to analyze the proposed tautog adult and larval diet items and to develop the micro assays which will be needed to analyze the effects of diet on the approximate 10 larvae per stage that will be available from the rearing facility at Milford.   All assays will be able to be applied to all stages with the exception of the PUFA analysis which requires 100 micrograms of lipid to do an analysis.  The exact stages upon which PUFA analysis will be performed will depend upon preliminary samples of various aged fish which will be provided by the second six months of the first year.
Year 1 1st 6 months a.  Graduate student training phase in PUFA analysis.
b.  Purification of tautog Lv.
c.  Characterization of tautog CaM reactivity in dot blot assay.
d.  Analysis of diet PUFA components.
2nd 6 months a.  Antiserum production.
b.  Development of  morphometric analysis.
c.  Preliminary PUFA analyses on various aged fish.
last 3 months a.  Characterization of  anti-tautog-Lv and developing dot blot assay.
Year 2 1st six months a.  Collect and assay tautog growth samples for all feasible assays.
2nd six months a.  Prepare results for publication.
