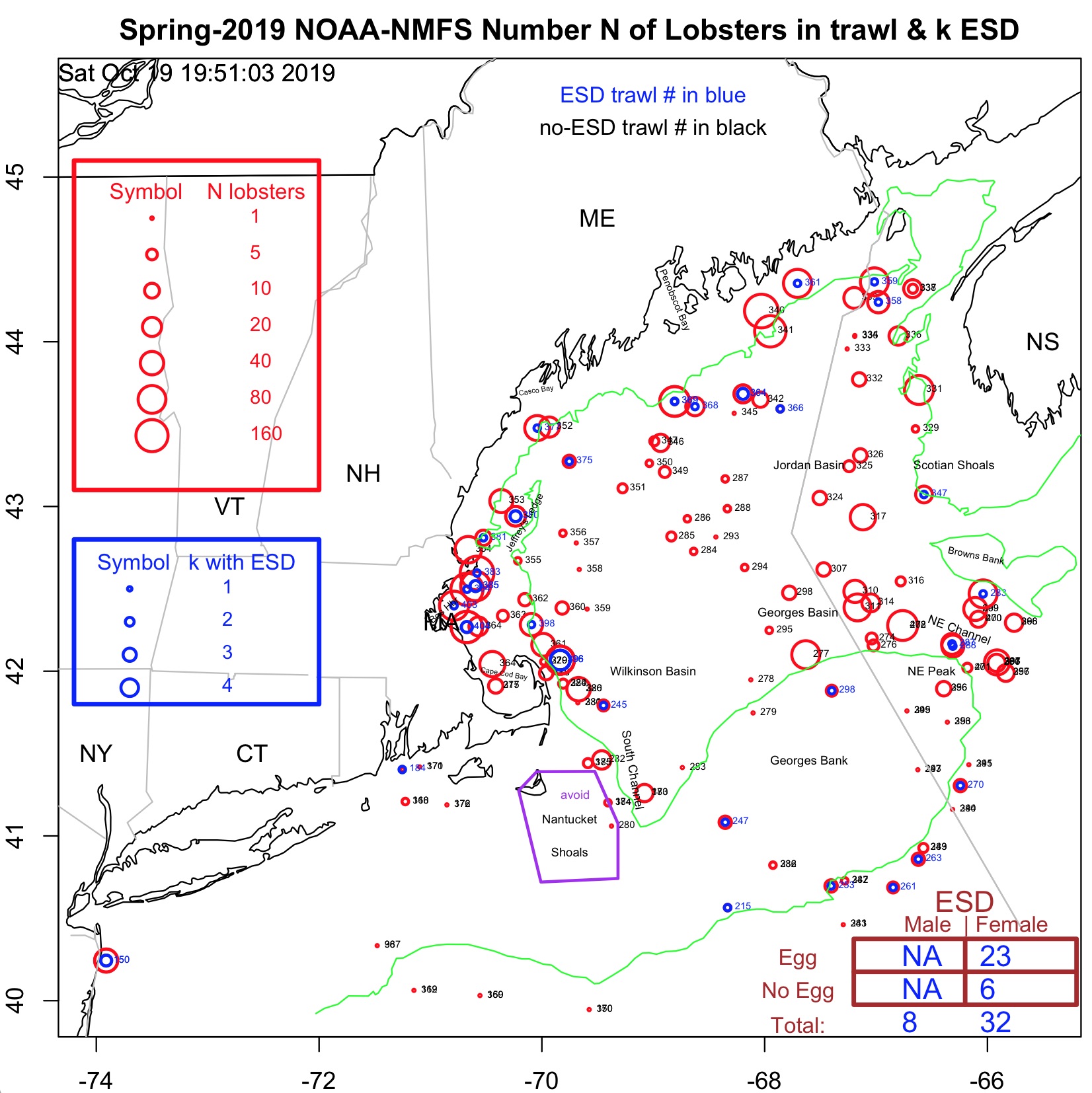

NOAA Ship Bigelow Spring 2019 Groundfish Survey
on Lobster Shell Disease

Validated Data and Analysis as of VI-19-2020 *

Specimen.	Barcode	Macro	Sex	CL	Wgt_kg	Trawl	K	N	Lat	Lon	Condition	SSiL	SSiS	AVI	SketchFab	Comments
S2019_074_01	28634		F w eggs	107		74	1	3	37.99336233	-74.123221	eggs	1	1	Hor Ver	SketchFab
S2019_150_01	65227		male.	74	-	150	2	27	40.24348017	-73.9114215	~.	1	1	Hor Ver	SketchFab
S2019_150_02	65196		male.	65	0.185	150	2	27	40.24348017	-73.9114215	~	1	1	Hor Ver	SketchFab
S2019_184_01	79360		F no eggs	75	0.325	184	1	1	41.40320417	-71.2531825	no eggs	3	3	Hor Ver	SketchFab
S2019_215_01	87509		F w eggs	102	0.92	215	1	2	40.56476983	-68.332559	eggs	3	3	Hor Ver	SketchFab
S2019_245_01	95496		F w eggs	114	0.935	245	1	4	41.79188217	-69.44675533	eggs	1	1	Hor Ver	SketchFab
S2019_247_01	95583		M.	60	0.18	247	1	5	41.08295333	-68.3537665	~.	1	2	Hor Ver	SketchFab
S2019_253_01	97349		F no eggs	116	1.285	253	1	5	40.69626667	-67.4036645	no eggs	0	1	Hor Ver	SketchFab	False(+). encrustation
S2019_261_01	100781		F w eggs	104	0.98	261	1	4	40.68721733	-66.84679033	eggs	1	1	Hor Ver	SketchFab
Specimen.	Barcode	Macro	Sex	CL	Wgt_kg	Trawl	K	N	Lat	Lon	Condition	SSI on land	SSI at sea	AVI	SketchFab	Comments
S2019_263_01	101640		f w eggs	166	3.55	263	1	5	40.858728	-66.6202685	eggs	1	1	Hor Ver	SketchFab
S2019_270_01	103889	no image or carapace	f w eggs	113	1.220	270	1	5	41.3056815	-66.24299133	eggs	-	2	NA	NA	carapace not save.
S2019_283_01	103889	no image or carapace	f no eggs	114	-	283	1	59	42.46948183	-66.03873233	no eggs	-	2	NA	NA	carapace not save.
S2019_287_01	108165		f w eggs	103	-	287	1	19	42.165746	-66.31818717	eggs	2	1	Hor Ver	SketchFab	abdomen intact
S2019_288_01	108345		f w eggs	120		288	1	23	42.152255	-66.310856	eggs	3	2	Hor Ver Hortx Vertx	SketchFab	* ESD level depends on perspective.
S2019_298_01	112300		f	109		298	1	4	41.881613	-67.397789	f no eggs	0	1	Hor Ver	SketchFab	false-positive ESD an injury
S2019_347_01	134633		f	100		347	1	10	43.072833	-66.569667	f w eggs	2	3	Hor Ver	SketchFab	abdomen removed but eggs
S2019_358_01	no####		f			358	1	21	44.240500	-66.979000	f no eggs	3	~.	Hor Ver	SketchFab	-abdomen removed and carapace frozen -sex not determined(?) -lobster protocol suspended -not recorded at sea with specific bar-code * ESD level depends on perspective.
S2019_359_01	139229		?	126		359	1	59	44.363667	-67.014833	18 May 2019 1629	1	1	Hor Ver	SketchFab	abdomen removed
S2019_361_01	140076		m	151		361	1	60	44.354333	-67.705000	-	3	3	Hor Ver HoFx VeFx	SketchFab SketchFix	The model was initially truncated on the left lateral edge and was fixed by resizing region and redoing alignment through texturing in Metashape I_.
S2019_364_01	142403		f	100		364	2	12	43.683333	-68.194500	f no eggs	0	1	Hor Ver	SketchFab	false Positive perhaps ESD in the last instar S2019_364_01 Work with points csv file
S2019_364_02	142509		f	93		364	2	12	43.683333	-68.194500.	f w eggs	2	2	Hor Ver	SketchFab
Specimen.	Barcode	Macro	Sex	CL	Wgt_kg	Trawl	K	N	Lat	Lon	Condition	SSI on land	SSI at sea	AVI	SketchFab	Comments
S2019_366_01	143268		f	109		366	1	2	43.592667	-67.860667	?	3	2	Hor Ver	SketchFab
S2019_368_01	144570		f	96		368	1	13	43.606667	-68.625667	aaaaaaa	2	1.	Hor Ver	SketchFab	abdomen removed
S2019_369_01	144645		f w eggs	88		369	1	78	43.637667	-68.808333	eggs	1	1.	Hor Ver	SketchFab
S2019_369_02	144686		f w eggs	103		369	1	78	43.637667	-68.808333	eggs	1	1.	Hor Ver	SketchFab
S2019_375_01	147773	no images	f w eggs			375	1	5	43.273667	-69.754167	eggs	1	1.			Released at sea. Few eggs.
	148795	no images	f w eggs	117	1.345	377	1	37	43.476000	-70.041500	eggs	1
S2019_380_01	150537		f w eggs	122		380	2	16	42.940833	-70.236000	eggs	2	1.	Hor Ver	SketchFab	ESD level changed from at-sea to land
S2019_380_02	150545		f w eggs	108		380	2	16	42.940833	-70.236000	eggs	1	1.	Hor Ver	SketchFab
S2019_381_01	151842		f w eggs	128		381	1	8	42.809833	-70.524500	1	2	1.	Hor Hor_sm Ver Ver_sm	SketchFab	abdomen removed
S2019_383_01	152917		m	77		383	1	146	42.596000	-70.582000	0	2	2.	Hor Ver	SketchFab	abdomen removed
S2019_384_01	153806		f	92		384	1	114	42.497500	-70.672167	-1.	2	not classified	Hor Ver	SketchFab	abdomen removed Macro shows inside lesion view.
Specimen.	Barcode	Macro	Sex	CL	Wgt_kg	Trawl	K	N	Lat	Lon	Condition	SSI on land	SSI at sea	AVI	SketchFab	Comments
S2019_385_01	154658		f	82		385	2	76	42.517000	-70.595333	-1	2	not classified	Hor Ver	SketchFab	abdomen removed
S2019_385_02	154734		m	82		385	2	76	42.517000	-70.595333	0	2	not classified	Hor Ver	SketchFab	abdomen removed
S2019_396_01	160887		f	122		396	4	60	42.067000	-69.835333	1	1	1	Hor Ver	SketchFab
S2019_396_02	160840		f	124		396	4	60	42.067000	-69.835333	1	3	2.	Hor Ver	SketchFab
S2019_396_03	160578		f	87		396	4	60	42.067000	-69.835333	1	2	1.	Hor Ver	SketchFab
S2019_396_04	160494		f.	117		396	4	60	42.067000	-69.835333	1	0	1.	Hor Ver	SketchFab

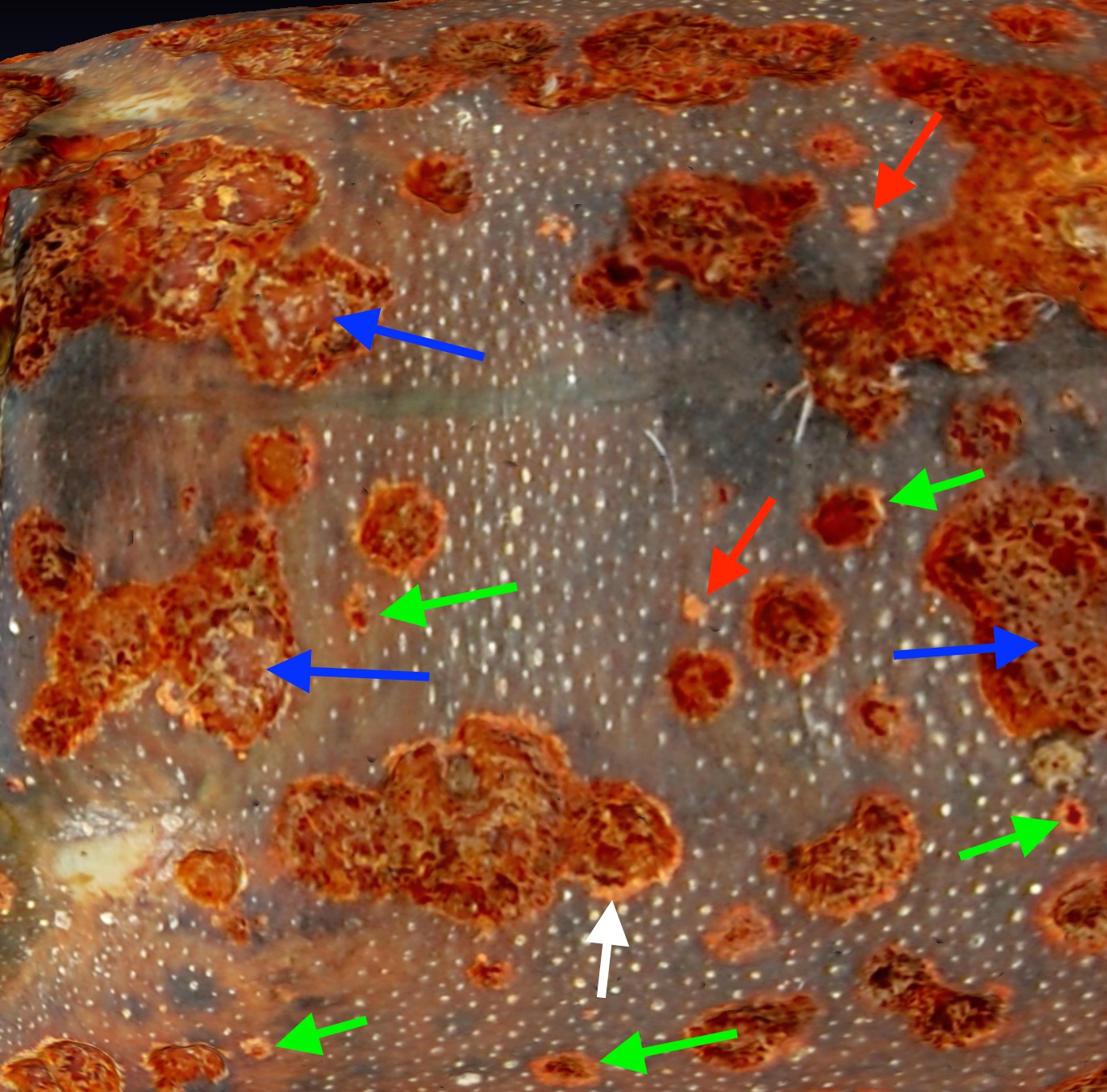

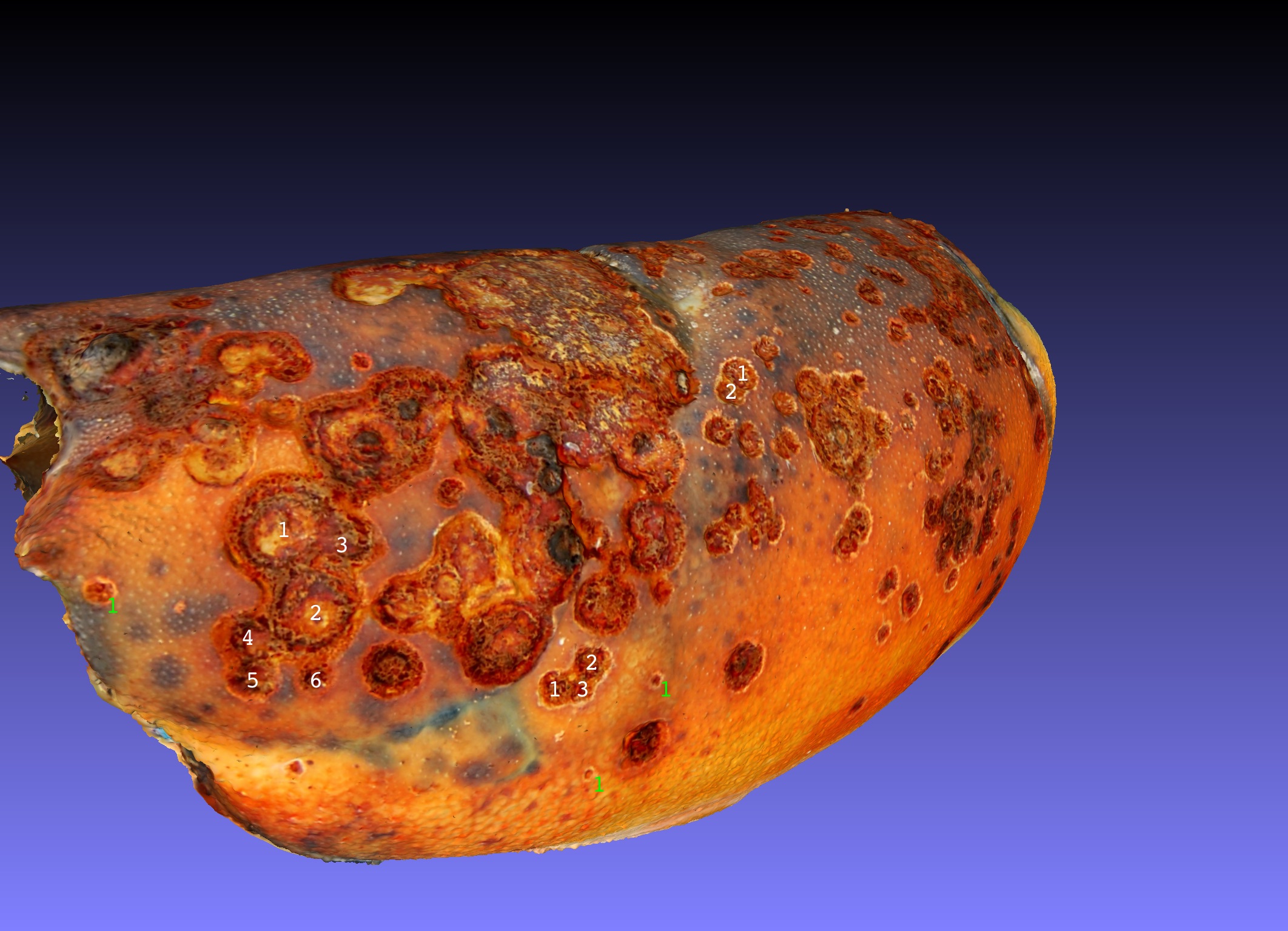

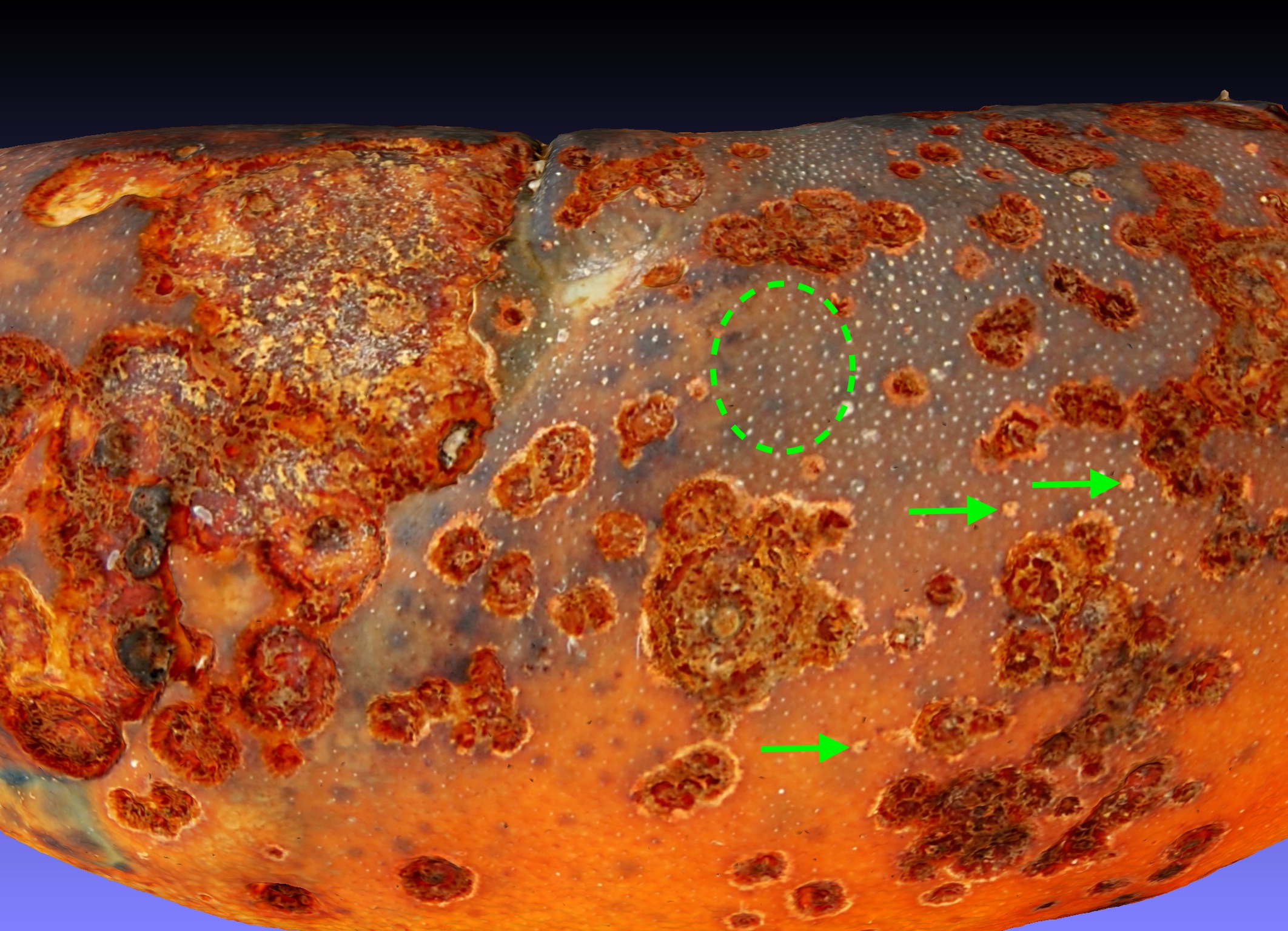

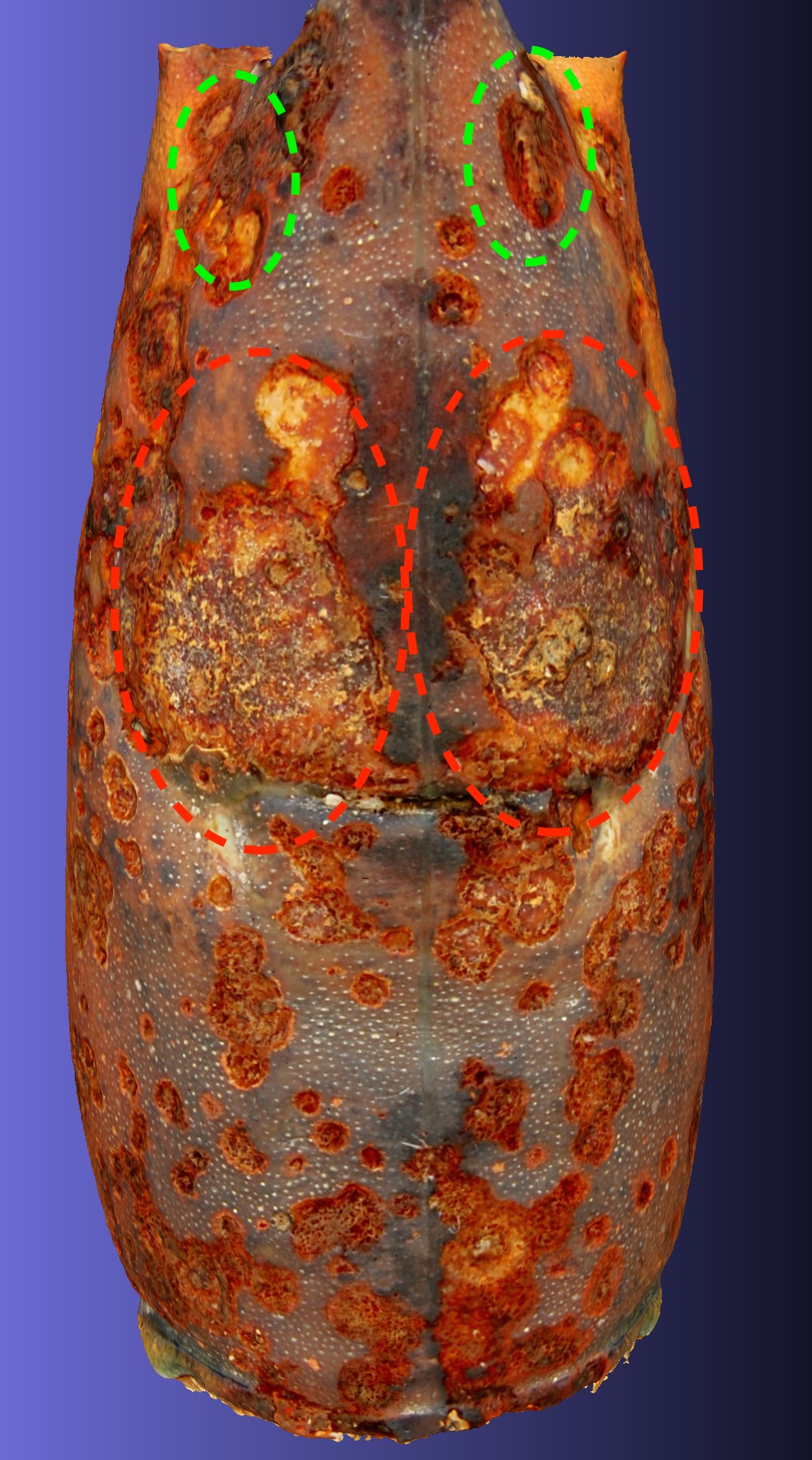

Lesion Symmetry Example: S2019_398_01	162189	Dialog on lesions: 1) origins? 2) development 3) lesions merge 4) symmetry	m	102		398	1	24	42.283000	-70.093500	0	3	3	Hor Ver	SketchFab	This Spring 2019 example of level 3 ESD is an exemplar of the Sustained Vulnerability Model of ESD. It shows all 3 distinct levels of ESD penetration through the cuticle epicuticle, exoculticle and endocuticle layers. It shows that the vulnerability is ustained through the winter and suggests the ESD is nucleated throughout the lobster molting cycle year and that there are likely healthy looking lobsters in the Fall that nevertherless are vulnerable to ESD establishing itself through the winter. Lesions develop in a symetrical pattern suggesting that it is a symetrical vulnerability rather than a random attack by an organism.
S2019_403_01	noid##		f.	~81.5		403	1	70	42.397667	-70.788833	1.	1	1	Hor Ver	SketchFab	abdomen removed
S2019_404_01	noid##		?	~77.5		404	2	100	42.268333	-70.673833	NA	1	not classified	Hor Ver	SketchFab	abdomen removed rostral barnacles
S2019_404_02	noid##		?	~82.3		404	2	100	42.268333	-70.673833	NA	1	not classified at sea	Hor Ver	SketchFab	abdomen removed
Specimen.	Barcode	Macro	Sex	CL	Wgt_kg	Trawl	K	N	Lat	Lon	Condition	SSI on land	SSI at sea	AVI	SketchFab	Comments

• Barcode
  Each organism submited to a protocol is assigned a barcode that is attached to the observations recorded on that organism.
• CL: The distance in mm from the eye socket to the posterior end of the carapace dorsal medial suture. The CL is considered the standard length that is used to determine whether a lobster is legal to catch and sell in a market.
• K: The number of ESD lobsters identified at a trawl site among the N lobsters examined at that trawl site.
• Lat, Lon: The Latitude and Longitude of the start of the standard 20-minute-on-the-bottom trawl.
• Condition
  • NA - data not collected
  • 0 - male with no condition info.
  • 1 - female with eggs
  • -1 - female with no eggs.
• SSI on Land: Shell Sickness Index determined on Land.
  • 0 - no shell disease.
  • 1 - between 0 and 10% surface involvement in shell disease.
  • 2 - between 10 and 50% surface involvement in shell disease.
  • 3 - between 50 and 100% surface involvement in shell disease.
• SSI at Sea: Shell Sickness Index determined at sea.
  Using the same scale as used for land index.
• Comments:
  • 'abdomen removed' to reduce the volumeof frozen material needed to transport the abdomen, legs and chela were often removed.
  • 'CL by ImageJ': When no CL was taken, a macro-image with its label could be used to estimate the CL using the measurement and callibration capability of ImageJ. The FSCS bar-code label is exactly 76 mm wide.
  • Valuable questionable false(+) examples were given a nominal SSI index of ESD at sea and frozen to be validated on land. These examples provide valuable illustrations for training in recognising ESD by observers at sea.
• NA refers to data not taken or not yet analyzed in the case of land processing.
• The design of the data collection protocols was done by Joe Kunkel in collaboration with NOAA NMFS colleagues John Galbraith and Jakub Kircun. Maine DMR Kathleen Reardon and Carl Wilson helped with review and comments on the protocol with respect to the Maine Lobster Survey.
• Cooperation of the Groundfish Survey leg Chief Scientsts are appreciated particularly Phil Politis, Chief Scientist on the legs I served on for appreciating my focus on the lobster protocol.
• This URL will be replaced as more Photogrammetry is completed.
  1. The .obj model files produced by Metashape analysis of the image data are viewable with Meshlab software producing superior views of the 3D rotatable models. They are available to those interested by communication with joe at bio.umass.edu
